W Audio DQM-800H Handheld UHF Wireless Microphone System – Professional Quad Channel

W Audio
442-282
0702338073434
    Delivery time:2 - 3 Working Days
Add to cart
  • Description
  • More
  • Specifications

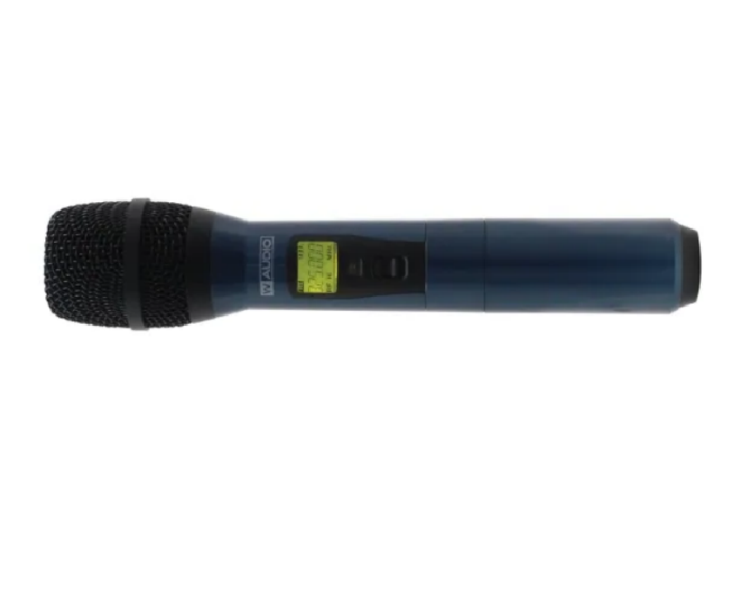

Replacement Hand Microphone

Dynamic, cardioid capsule

UHF band, Phase Lock Loop (PLL) offering stable RF transmission

Preset frequency groups plus a user definable frequency group allows users to tune the operating frequency of each channel

IR infrared frequency synchronisation via infrared interface

Mute circuitry for reduced noise

The W Audio DQM-800H Handheld Microphone is a professional-grade UHF wireless microphone system designed for high-quality vocal performance and reliable wireless connectivity. Operating within the 823–832MHz (CH65) and 863–865MHz (CH70) frequency bands, it offers 99 selectable frequencies, ensuring flexibility and minimal interference in various environments. The system features a dynamic cardioid microphone capsule, delivering clear and focused sound reproduction, ideal for live performances, presentations, and public speaking. The ergonomic design of the handheld transmitter ensures comfortable use during extended sessions, while the robust construction withstands the rigors of professional use. With a frequency response of 50Hz–16kHz and a dynamic range of 96dB, the DQM-800H provides exceptional audio clarity and detail. The receiver includes a 1U rack-mountable metal housing with integrated brackets, OLED display for easy monitoring, and balanced XLR outputs for seamless integration into existing audio setups.

The W Audio DQM-800H is ideally suited for professional settings that demand high-quality wireless audio transmission. Its robust design and reliable performance make it perfect for live music venues, theaters, houses of worship, conference centers, and educational institutions. The system's ability to operate on license-free frequencies in the UK (CH70) simplifies deployment in various locations without regulatory concerns. Additionally, the option to expand the system with additional belt pack kits provides flexibility for different performance needs, including presentations and theatrical productions

What you get for your money:

1 x UHF receiver

4 x Handheld Transmitters

2 x UHF antenna (BNC)

2 x BNC Plug - Socket Antenna lead

1 x 230Vac Mains power adaptor

Power Supply:

Transmitters: 2 x AA Batteries





























Frequency Response:

50Hz to 16KHz

Total Harmonic Distortion (THD): <0.5% @ 1KHz
Antenna connection:

Fixed

Dimensions:

Transmitter 255 x 45mmØ
