W Audio DQM 800H Quad Handheld UHF Wireless Microphone System – Professional Multi-Channel Audio Solution

W Audio
440-082
0759478548551
    Delivery time:2 - 3 Working Days
Add to cart
  • Description
  • More
  • Specifications

Quad Handheld Wireless Microphone System.

Quad channel system with removable antennas (BNC connection).

4 x Individual Outputs balanced XLR

Dynamic, cardioid handheld microphone capsule

99 selectable UHF frequencies (823-832Mhz).

OLED display for indicating RF and AF signal level and frequency.

Operating Range up to 50m (Line of Sight)

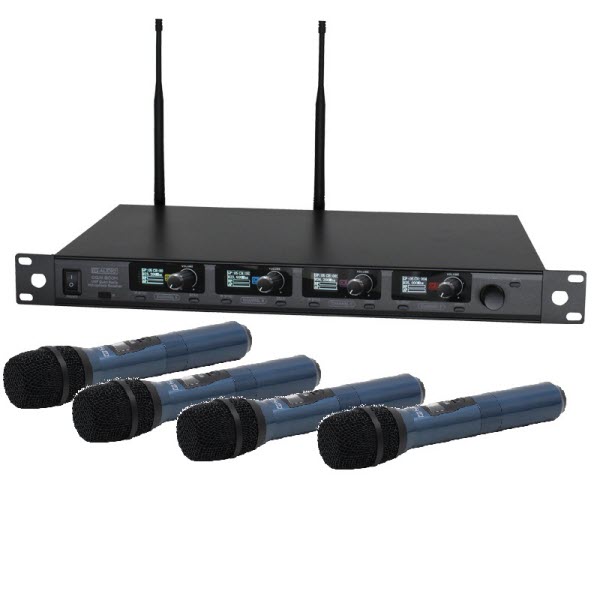

The W Audio DQM 800H is a professional-grade quad handheld UHF wireless microphone system, designed for high-demand live sound environments. Operating within the 823–832 MHz (Channel 65) and 863–865 MHz (Channel 70) frequency bands, it offers 99 selectable frequencies, ensuring flexibility and minimal interference. The system includes four dynamic cardioid handheld microphones and a full-width 1U rack-mountable receiver featuring Phase Lock Loop (PLL) technology for stable RF transmission. With features like automatic frequency scanning, infrared synchronization, OLED displays, and both balanced XLR and unbalanced mixed outputs, the DQM 800H delivers crystal-clear audio and reliable performance for various professional applications.

The W Audio DQM 800H is engineered for environments where reliable and clear vocal capture is essential. Its design makes it particularly effective in:

  • Live Performances: Providing focused audio capture on stage, minimizing feedback and ambient noise.

  • Recording Studios: Capturing the nuanced tones of vocals with clarity.

  • Public Speaking: Ensuring clear and precise audio for speeches and presentations.

  • Rehearsal Spaces: Offering reliable sound capture for practice sessions and demos.

With its high sensitivity and directional pickup, the DQM 800H excels in environments where accurate sound reproduction is paramount.

What you get for your money:

1 x UHF receiver

4 x Handheld Transmitters

2 x UHF antenna (BNC)

2 x BNC Plug - Socket Antenna lead

1 x 230Vac Mains power adaptor

Power Supply:

Receiver: 14Vdc 1.2A (Via Adaptor) Supplied

Transmitters: 2 x AA Batteries

Output Impedance:

XLR 600 ohms

6.35mm Jack

Output connections: 4 x XLR balanced

1 x 6.3mm jack, unbalanced

Total Harmonic Distortion (THD): <0.5% @ 1KHz
Frequency Response: 50Hz - 16KHz
Antenna connection:

BNC

Dimensions:

Receiver 482 x 215 x 45mm

Transmitter 250 x 45mmØ
