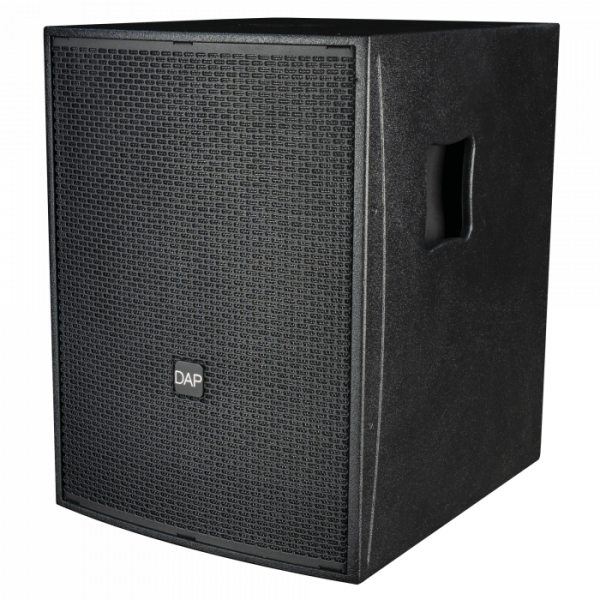

The DAP NRG-12S is a compact, passive 12” bass reflex subwoofer designed for professional audio installations. Delivering 300W RMS (1200W peak) power, it features a 2.5” voice coil and a ferrite magnet, ensuring deep bass reproduction down to 50 Hz. With a sensitivity of 94 dB and a maximum SPL of 120 dB at 1 meter, the NRG-12S provides robust low-frequency support for various audio setups. Its lightweight plywood enclosure, weighing 17.5 kg, includes an M20 threaded pole mount for easy integration with full-range speakers. Equipped with 4-pole speaker connectors and a 4-pin terminal, it's tailored for fixed indoor installations in venues such as bars, cafés, and retail environments. For optimal performance, a 4th order high-pass filter at 45 Hz and a low-pass filter up to 450 Hz are recommended.
The DAP NRG-12S is specifically designed for permanent indoor installations, making it an excellent choice for venues like bars, cafés, restaurants, and retail spaces. Its passive design and durable plywood construction ensure longevity and consistent performance in fixed setups. The inclusion of both 4-pole speaker connectors and a 4-pin terminal facilitates seamless integration into existing audio systems. With an IP20 rating, the NRG-12S is intended for indoor use only, providing reliable bass enhancement in controlled environments
