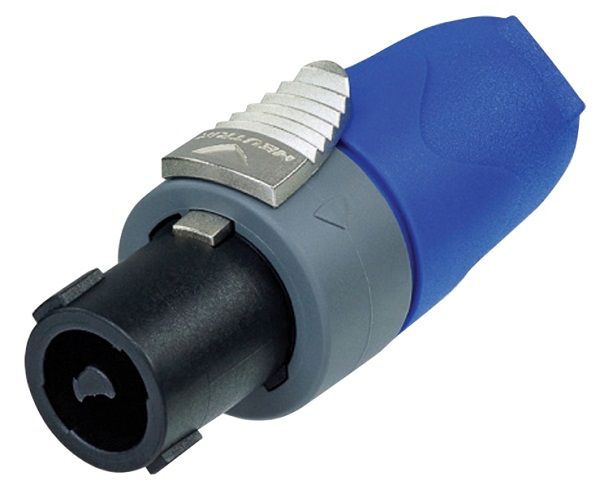

Neutrik NL2FXX-W-S Speaker Connector

Neutrik NL2FXX-W-S SpeakON Plug
Neutrik
091-020
7613187007606
    Delivery time:2 - 3 Working Days
Add to cart
  • Description
  • Specifications

Mates with 2-pole chassis connector as well as 4-pole chassis connector (contacts +1/-1)

Ergonomic design with slip-proof two-component molded housing

Up to 37 A rms current rating

Unique Neutrik locking bushing and strain relief for cable diameters 6 mm to 12 mm

IEC 61984 certified, thus accepted as a component of equipment acc. to IEC 62368-1

Superior NEUTRIK quality standard, extremely robust and reliable

Easy and reliable twist lock system

Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing

Improved kink protection by two-component bushing

The industry-standard for loudspeaker connections offer extremely reliable and robust cable connectors with a reliable locking system. They feature solid contacts with screw-type terminals including a stranded wire protection which offer also solder termination.

Contact resistance: ≤ 2 mΩ
Dielectric strength: 2.8 kVac
Insulation resistance: > 10 GΩ (initially)
Current Rating:
Rating Europe IEC 61984: 37 A 250 V AC
Rating USA UL1977: 35 A 250 V AC
Rating Canada CSA C22.2 No.182.3: 24 A 250 V AC
Cable Diameter: 6.0 – 12mm
Lifetime: typically 5’000 mating cycles
Wiresize: max. 4.0mm² (11AWG)
Wiring: Screw type terminals
Locking device: Twist lock
IP Rating: IP20
