Citronic CMB-10 Compact 10-Channel Mixer with DSP, Bluetooth & USB

Citronic
445-890
5015972234815
    Delivery time:2 - 3 Working Days
Add to cart
  • Description
  • Specifications

4 x Microphone / Line Level Channels.

2 x Stereo Music Channels (Line Level).

Each Channel has a 3-Band EQ.

48V Phantom Power available.

DSP effect section with 99 adjustable pre-sets.

Bluetooth receiver with independent volume control

USB mp3 audio player/recorder

Balanced XLR outputs.

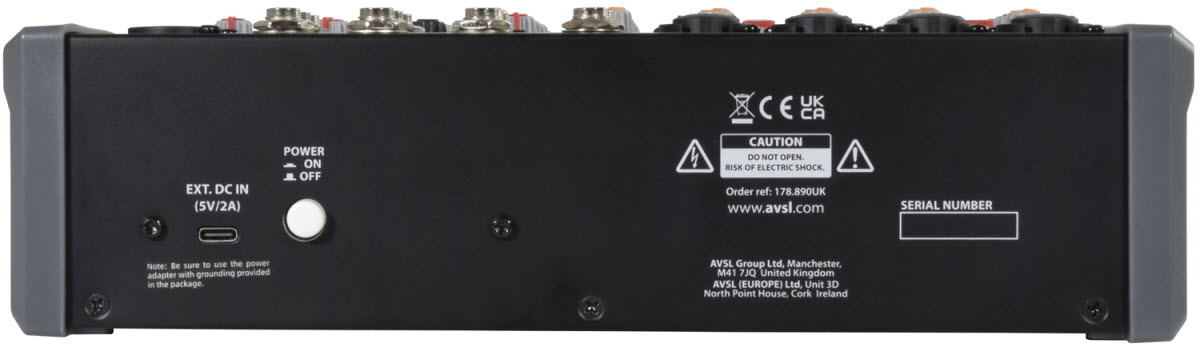

USB type-C power supply.

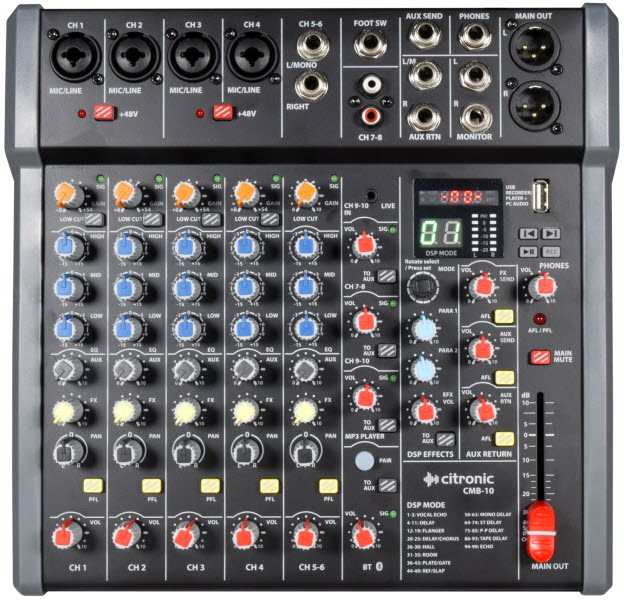

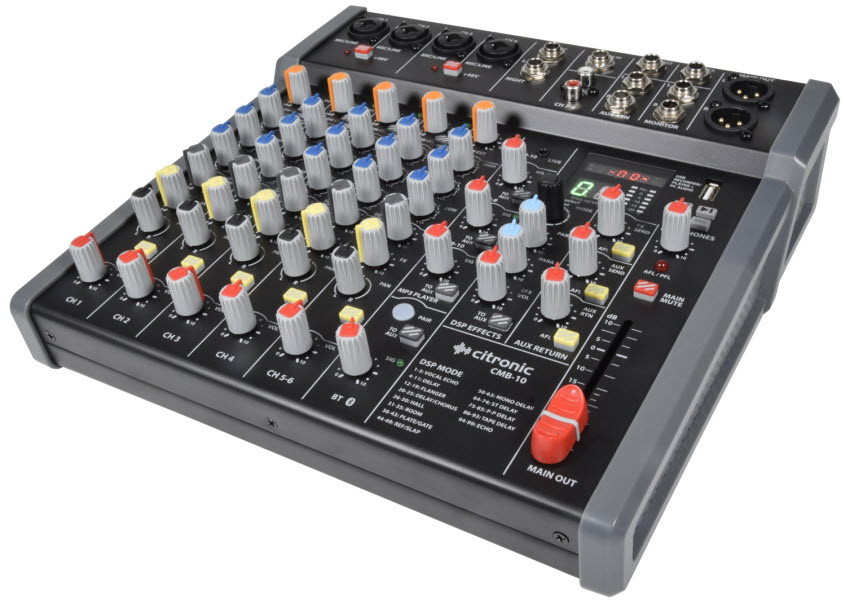

The Citronic CMB-10 is a compact, feature-rich 10-channel audio mixer designed for both live and studio applications. It offers four mono mic/line channels with combo XLR/jack inputs, each equipped with a 3-band EQ, gain control, low-cut filter, and switchable +48V phantom power. Additional inputs include stereo line, stereo aux, and a 3.5mm mini-jack, accommodating a variety of audio sources. The built-in DSP effects processor provides 99 adjustable presets, including reverb, delay, and modulation effects, enhancing your sound with professional-quality effects. With integrated Bluetooth 5.1 connectivity and a USB MP3 player/recorder, the CMB-10 allows seamless playback and recording options. Its USB-C power supply and compatibility with PC/Mac systems make it a versatile choice for modern audio setups. Balanced XLR main outputs, monitor and headphone outputs, and an aux send/stereo return loop offer flexible routing options for various audio applications

The Citronic CMB-10 is ideally suited for small to medium-sized venues requiring a versatile and compact mixing solution. Its robust feature set makes it perfect for live performances, home studios, podcasting, and broadcast environments. The mixer's multiple input options and onboard effects cater to solo performers, small bands, and content creators seeking high-quality audio control in a portable format. Its Bluetooth and USB capabilities further enhance its adaptability in various modern audio setups.

Power Supply: 5Vdc 2A min. (USB-C adaptor included)
Inputs:

mic/line 4 x XLR balanced

line 2 x 6.35mm jack balanced

line 1 x 3.5mm jack un balanced

line 1 x  RCA (L+R )

Bluetooth: v5.1 (+BR+EDR+BLE)
Input Impedance:

2.0k Ohms (mic/line)

10k Ohms (line)

Outputs:

Main 2 x XLR balanced

Monitor 2 x L+R 6.35mm Jack

Aux Send 10 6.35mm Jack

Headphones 1 x 6.35mm Jack


Output Impedance:

<75 ohms

Effects:

99 Adjustable

Frequency response:

20Hz-22kHz

Headphones:

6.3mm jack, 30-600 ohms

Total Harmonic Distortion (THD): <0.05%
Phantom Power: +48V (XLR inputs)
Dimensions: 270 x 260 x 74mm
