Citronic TU4-N Quad UHF Wireless Microphone System – Professional Multi-Channel Audio Solution

Citronic
445-044
5015972235218
    Delivery time:2 - 3 Working Days
Add to cart
  • Description
  • More
  • Specifications

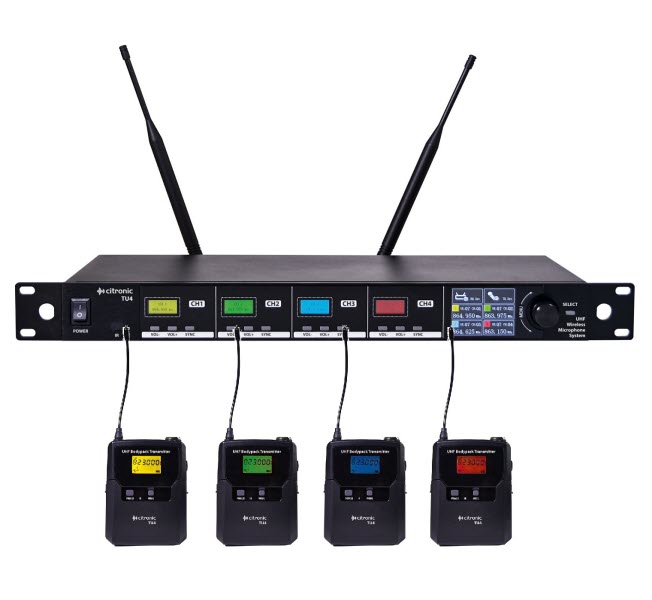

Supplied with four Beltpack transmitters, Headband and Lavalier/Tie clip Microphones

Independent 7-band EQ for each channel

True diversity antennas with internal distro

Auto frequency sweep function

Individual XLR outputs or single mix jack output

License-free operation in UK and EU regions

Operating Range 25 - 30m (Line of Sight)

The Citronic TU4-N Quad UHF Wireless Microphone System is a professional-grade solution designed for live performances, conferences, theatrical productions, and other applications requiring multiple wireless microphones. This system offers four independently programmable channels, each with its own 7-band EQ, allowing for precise audio customization.

Key Features:

  • True Diversity UHF Wireless System: Ensures stable and interference-free signal transmission.

  • Four Independently Programmable Channels: Each channel can be individually set for frequency, EQ, transmission power, and display backlight color.

  • Wireless Syncing: Easily synchronize each transmitter with the receiver via infrared connection.

  • Operating Range: Reliable performance within a 25–30m line-of-sight range.

  • Flexible Microphone Options: Supplied with four beltpack transmitters, each compatible with both headband and lavalier microphones.

  • Rack-Mountable Receiver: The 1U receiver unit is designed for 19" rack installations and includes dual BNC antennas with front or rear mounting options.

  • Output Options: Features four balanced XLR outputs and a single unbalanced 6.35mm jack output for mixed audio.

  • License-Free Operation: Operates within the 823–832 MHz and 863–865 MHz frequency bands, which are license-free in the UK and EU

    This comprehensive system is ideal for professionals seeking a reliable and versatile wireless microphone setup

What you get for your money:

1 x UHF receiver

2 x Handheld Transmitters

4 x AA batteries

2 x UHF antenna (BNC)

2 x BNC Plug - Socket Antenna lead

2 x Rack-mounting ears

1 x 230Vac Mains power adaptor

1 x 6.3mm jack to jack lead

Power Supply:

Receiver: 12 - 18Vdc 100mA (Via Adaptor) Supplied

Transmitter: 2 x AA Batteries


Frequency Response:

50Hz - 18KHz

Output Impedance :

XLR 400mV / 2200 ohms

6.35mm jack 200mV / 2200 ohms



Total Harmonic Distortion (THD): <0.5% @ 1KHz
Antenna connection:

BNC

Output connections: 4 x XLR balanced

1 x 6.3mm jack, unbalanced (Mixed Output)

Dimensions:

Receiver 482 x 185 x 44mm

Transmitter 90 x 60 x 25mm



Transmitter Frequency: 823-832 / 863-865 MHz
