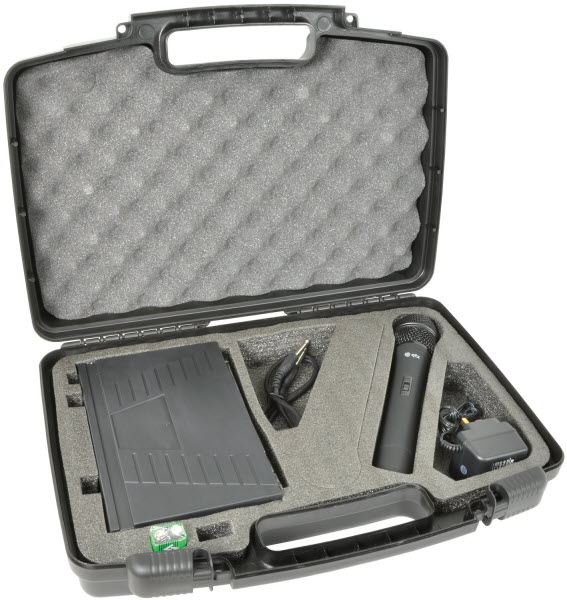

This
professional wireless set provides a high quality microphone with VHF
radio system for freedom of movement without loss of audio quality.
Please read this manual before using this equipment in order to avoid
damage through incorrect operation and to get the best performance from
your purchase.

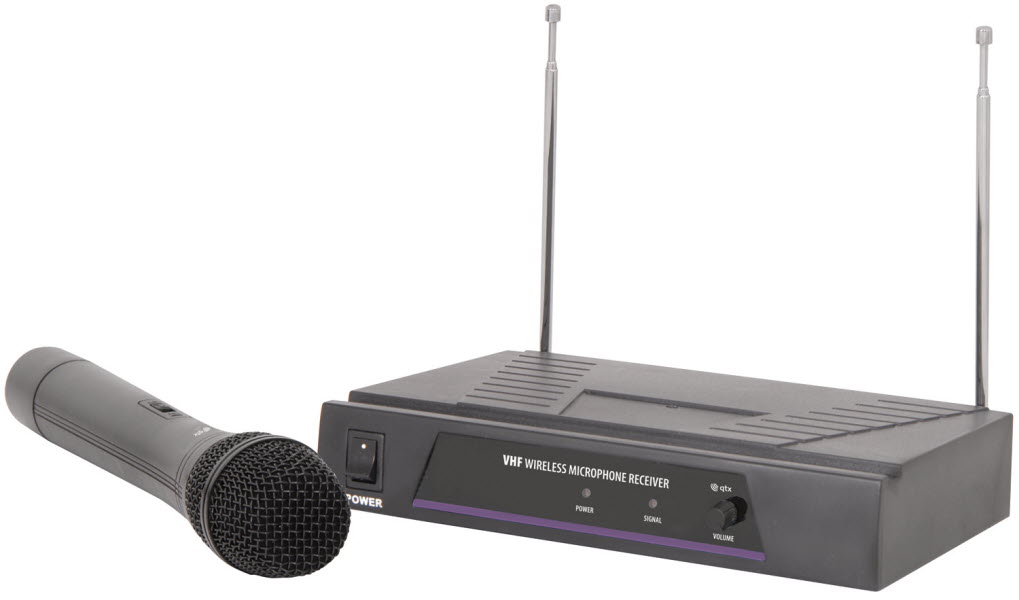

Handheld Transmitter Beltpack Transmitter

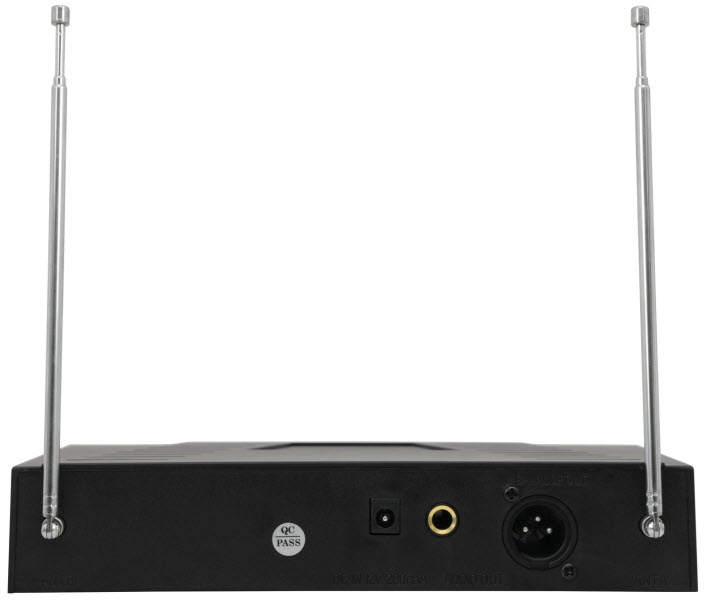

Receiver Rear Panel
Receiver Front Panel
Operation
For handheld transmitters, insert the supplied 9V batteries by carefully
unscrewing the base to reveal the + and - terminals inside the
microphone body, connect the battery (ensure + and - are the correct way
around) and carefully screw the base back on.
For beltpacks, slide the front half of the beltpack upwards just enough
to reveal the battery compartment and position the supplied 9V battery
inside (ensure + and - are the correct way around) and then slide the
beltpack case together as before.
Position the receiver within the best available line of sight to the
transmitter(s) and connect the DC jack of the supplied power adapter to
the receiver and the plug-top to the mains outlet. Extend both antennas
fully upwards and outwards slightly and switch the power on. Turn
microphone level(s) down on the receiver.
Note: for dual sets (with 2 transmitters), both microphones’ outputs
will be mixed and fed to both XLR and jack outputs.
Connect the jack or XLR (optional) lead to the receiver’s audio output
connector, turn down the volume of any equipment (mixer, amplifier etc.)
that the signal will be fed into and then connect the jack or XLR to the
equipment.
Warning! - take care not to point microphones towards speakers – this
can cause damaging feedback (loud whistle or howling noise) – try to
point microphones away from the speaker cabinets.
Move the switch on the handheld or beltpack transmitter to the first
notch (MUTE) – the LED should light momentarily (continuous dim LED
indicates low battery). Move on another notch (ON) and gradually
increase the microphone level(s) on the receiver, then increase the
volume on the mixer or amplifier until the sound from the microphone can
be heard through the equipment.
During use, it may be useful for the reception of the microphone to be
muted for a short period of time (e.g. to avoid feedback when walking
across the front of a speaker or avoid handling noise when placing the
microphone down momentarily or adjusting a neckband microphone). In
these circumstances, it may be better to move the transmitter switch to
the “MUTE” position, which maintains the radio frequency carrier signal
but mutes the microphone input. When this switch is moved back to the
“ON” position, the sound will be immediately restored without waiting
for the radio signal to be reinstated.
If the wireless system is not to be used for more than a few seconds, it
is preferable to slide the transmitter switch to the “OFF” position,
which mutes and deactivates the radio signal and powers down the
transmitter. Be sure to turn down the volume of the mixer or amplifier
and then switch off the receiver. Unplug signal leads from the receiver
and mixer or amplifier when moving or packing away.
If the system is not to be used for long periods of time, remove the
batteries from the transmitter and unplug the power adapter from the
receiver and the mains outlet. Retracting the antennas can also help
avoid damage when the system is not in use.
