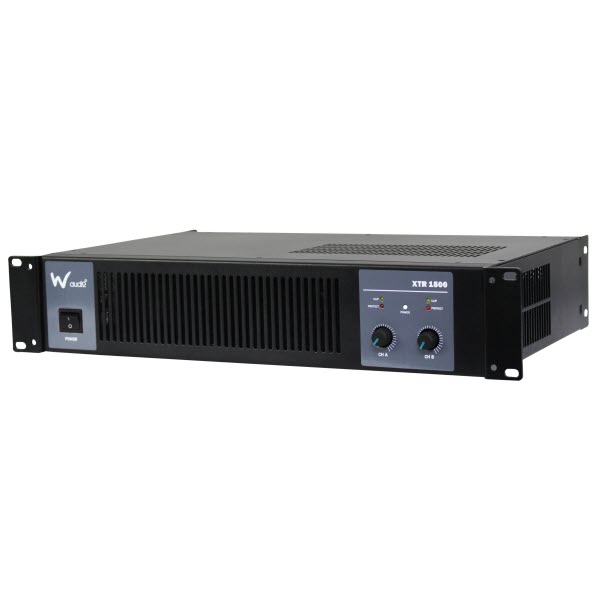

W Audio XTR 1500 Amplifier
W Audio
440-051
0723175528130
    Delivery time:2 - 3 Working Days
Add to cart
  • Description
  • Specifications

2 x 500 watts RMS @ 8 Ohms

Suitable for 4 and 8 Ohm Loads

Operation. Stereo.

2 x RCA/Jack Inputs.

Independent Channel Gain Controls.

LED Signal Indication.

Speakon/ Binding Post Speaker terminals

The XTR 1500 is a professional stereo amplifier idea for installations into bars, clubs and pubs, and where reliability and high power output is required. The XTR 1000can be installed into a rack taking up a 2U space  or it can be used free standing on a table or shelf.

The XTR 1500 will deliver 750 watts RMS per channel at 4 Ohm load or 500 watts in to a 8 Ohms. It boasts a range of key features such as short circuit and thermal overload protection and DC fault.

The W Audio XTR 1500 amplifier is more than just a PA amp, it can be used as a stand alone unit or integrated into a large PA system. It will accept RCA and Jack input signals and has speakon, Jack and binding posts for speaker outputs

Power Supply: 230Vac, 50Hz (IEC)
Output Power (RMS):

2 x 750W @ 4 ohms

2 x 500W @  8ohms
Line input:

RCA/6.35mm Jack Sockets
Input Sensitivity:  0.755V - 1.44V
Line Output:


Frequency Response: 20Hz - 20kHz
Signal to Noise Ratio (SNR):

>95dB
Total Harmonic Distortion (THD): %
Dimensions:

484 x 297 x 87mm
