W Audio EPX 1200 Power Amplifier – 2x400W Stereo Amp for Professional Audio

W Audio
440-023
0723175524439
    Delivery time:2 - 3 Working Days
Add to cart
  • Description
  • Specifications

Selectable Input sensitivity: 0.775V / 1.0V / 1.44V

Suitable for 4 and 8 Ohm Loads

Operation. Stereo, Parallel or Bridge Mode.

2 x RCA/Jack Inputs.

Independent Channel Gain Controls.

LED Signal Indication.

Speakon/ Binding Post Speaker terminals

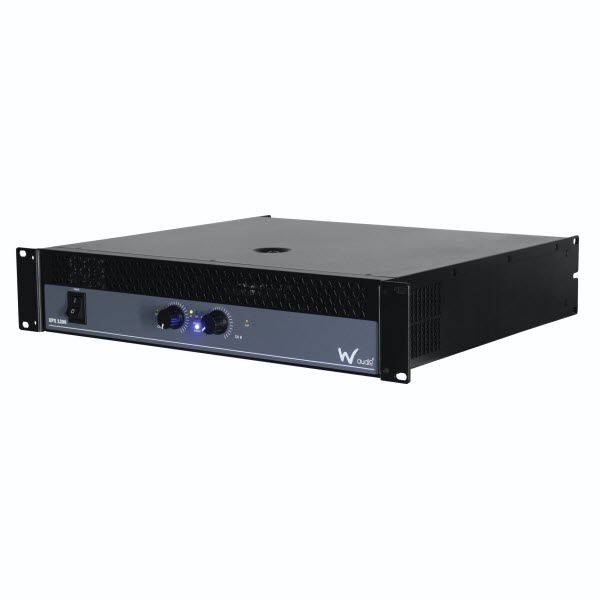

The W Audio EPX 1200 is a professional-grade stereo power amplifier delivering 2 x 600W RMS at 4Ω or 2 x 400W RMS at 8Ω, with a bridged output of 1200W at 8Ω. Designed for reliability and performance, it features comprehensive protection circuits—including soft start, thermal, short circuit, and overload safeguards—alongside a variable-speed fan cooling system to ensure consistent operation. Its versatile connectivity options, including XLR, 1/4” jack, and speakON connectors, make it suitable for various audio setups. The EPX 1200 is ideal for installations in bars, cafés, restaurants, and retail environments, offering clear and detailed sound for both background and foreground music applications.

The W Audio EPX 1200 amplifier is well-suited for both fixed installations and portable PA systems. Its robust design and versatile connectivity make it an excellent choice for venues such as bars, pubs, cafes, restaurants, and retail stores. The amplifier's ability to deliver high-quality sound at various impedance levels ensures compatibility with a wide range of loudspeaker systems, including ceiling and wall-mounted speakers. Its protective features and reliable performance make it a dependable component for professional audio setups in small to medium-sized venues

Power Supply: 230Vac, 50Hz (Powercon)
Output Power (RMS):

2 x 800W @ 4 ohms

2 x 600W @  ohms

1 x 1200W @ 8 ohms (Bridged)

1 x 2900W @ 4 ohms (Bridged)

Line input:

XLR/6.35mm Jack Sockets

Input Sensitivity: Switchable between 0.7V - 1.0V and 1.44V
Line Output:

2 x XLR (Link)

Frequency Response: 20Hz - 20kHz
Signal to Noise Ratio (SNR):

>100dB

Total Harmonic Distortion (THD): %
Dimensions:

481 x 450 x 87mm
