Citronic CSR-63 9-Channel Rack-Mount Mixer with DSP & Bluetooth

Citronic
445-809
5015972232927
    Delivery time:2 - 3 Working Days
Add to cart
  • Description
  • Specifications

12-Channel Audio Mixer.

Built-in Digital Signal Processor.

6 x Microphone / Line Level Channels.

Phantom Power available.

3 x Music Channels (Line Level).

Stereo Record Playback

Bass and Treble Controls for each channel.

Supplied with Rack mount fixing kit

DC Power inlet mounted on top and rear fascia

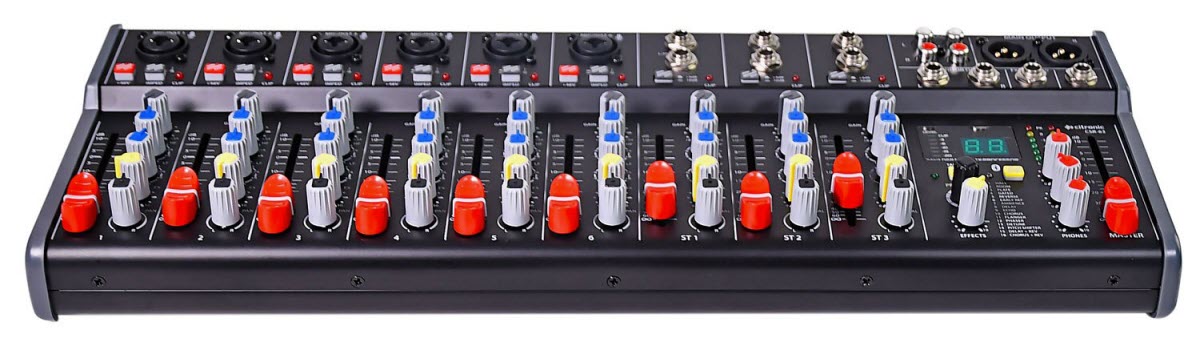

The Citronic CSR-63 is a compact yet powerful 9-channel rack-mountable mixer designed to deliver professional audio mixing capabilities in a slim profile. It features 6 mono mic/line channels and 3 stereo line channels, each equipped with individual gain control, 2-band EQ, FX send, pan control, and a 60mm level fader for precise adjustments. The mono channels offer individually switchable +48V phantom power, accommodating condenser microphones and active DI boxes.

Enhance your sound with the built-in 24-bit DSP effects processor, offering 16 editable presets that can be activated remotely via a footswitch—perfect for live performers seeking on-the-fly control. The integrated Bluetooth receiver allows for seamless wireless audio streaming from compatible devices, adding versatility to your setup.

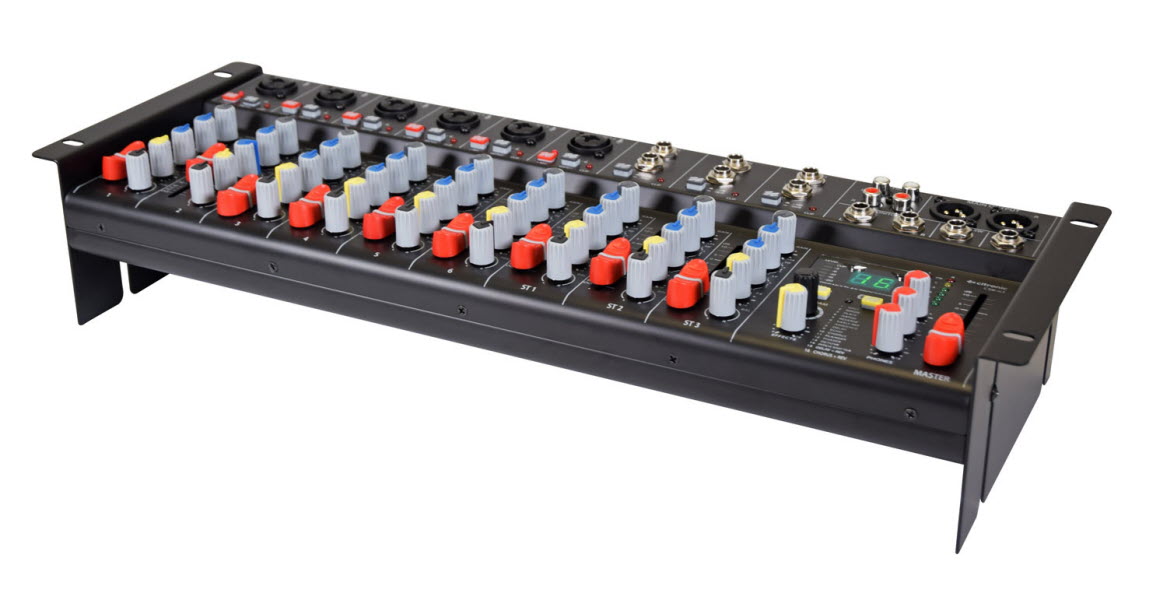

Designed for flexibility, the CSR-63 can be installed into a standard 19" rack using the supplied adjustable-depth side panels or used as a free-standing unit. Its shallow housing depth facilitates back-to-back mounting with other equipment, making it suitable for racks with rear mounting strips. Top-mounted connectors ensure easy cable management, whether in permanent installations or mobile setups.

With balanced XLR main outputs, 2-track in/out, monitor out, and headphone out, the CSR-63 provides comprehensive connectivity options. Its robust construction and user-friendly interface make it an ideal choice for various audio applications, including live performances, conferences, and studio recordings.

The Citronic CSR-63 is engineered for versatility, making it suitable for a wide range of audio setups:


  • Live Performances: Its compact design and remote-controllable DSP effects make it perfect for bands and solo artists on the go.

  • Mobile PA Systems: The mixer's shallow depth and rack-mountable design allow for easy integration into portable racks, ideal for event organizers and DJs.

  • Fixed Installations: With its adjustable rack-mounting options and top-mounted connectors, the CSR-63 is well-suited for venues, houses of worship, and conference centres requiring a permanent audio solution.

  • Studios and Rehearsal Spaces: The mixer's comprehensive input options and Bluetooth connectivity provide flexibility for various recording and practice scenarios.


Overall, the Citronic CSR-63 offers a blend of functionality and adaptability, catering to both mobile and fixed audio environments.



Power Supply: 5Vdc, 2A (in-line PSU included)
Inputs:

mic/line 6 x XLR (bal/unbal)

aux 3 x L+R 6.35mm Jack

Input Impedance:

2.2k Ohms (mic/line), 10k Ohms (aux)

Outputs:

Main L+R XLR

Record out (RCA)

Monitor 6.35mm jack

Output Impedance:

120 ohms

Audio Source:


Frequency response:

20Hz - 20kHz (±0.5B)

Signal to noise ratio: (SNR)



Total Harmonic Distortion: (THD) <0.03% @ 1kHz
Phantom Power: +48V (switchable channels 1-6)
Dimensions: 482 x 160 x 90mm
