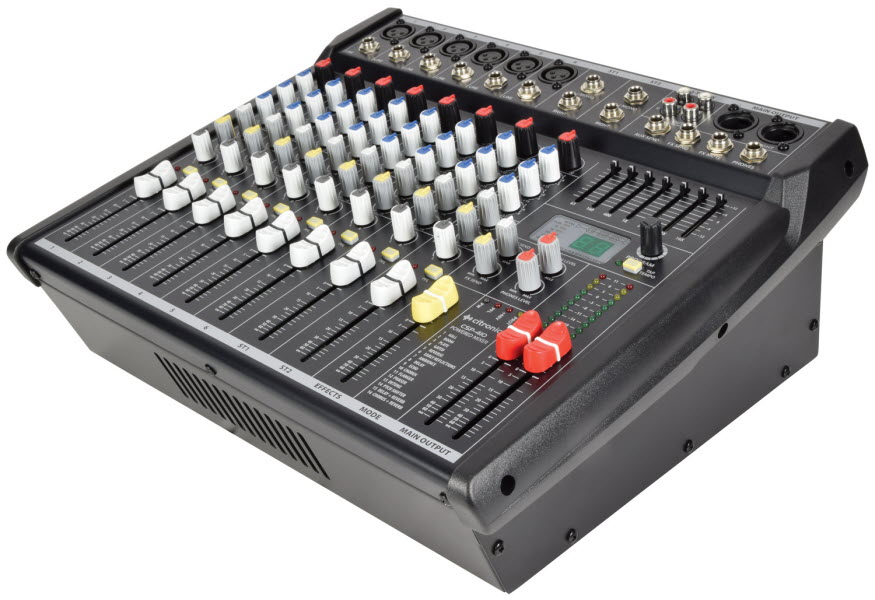

Citronic CSP-714 14-Input Powered Mixer – 260W with DSP Effects & Graphic EQ

Citronic
445-868
5015972196182
    Delivery time:2 - 3 Working Days
Add to cart
  • Description
  • Specifications

6 x Microphone / Line Level Channels.

2 x Stereo Music Channels (Line Level).

Each Channel has a 3-Band EQ.

48V Phantom Power available.

Overall 7-Band Graphic Equaliser.

24-bit 16 program DSP effects.

Balanced XLR outputs.

IEC mains input connection.

The Citronic CSP-714 is a versatile 14-input powered mixer designed for a range of live sound applications. With a robust 2x350W stereo amplifier, it delivers clear and powerful audio suitable for various events.

Each of the ten mono channels features a balanced XLR/TRS input with 3-band EQ and aux send, while two stereo channels accommodate additional line-level sources. A 16-program 24-bit DSP effects processor with tap tempo provides a variety of vocal and instrument effects, and a 7-band global graphic EQ allows for precise tonal adjustments.

The CSP-714 includes balanced main outputs, 2-track RCA in/out, and a headphone output for monitoring. Its compact design and optional rack-mounting capability make it ideal for both portable and installed sound systems.

The Citronic CSP-714 is well-suited for various settings:


  • Mobile PA Systems: Its compact size and integrated amplifier make it perfect for portable setups.

  • Bars and Restaurants: Provides reliable sound reinforcement for live music and events.

  • Corporate Events: Offers clear audio for presentations and conferences.

  • Houses of Worship: Delivers consistent sound quality for sermons and musical performances.


With its combination of power, flexibility, and portability, the CSP-714 is a dependable choice for a wide range of audio applications.



Power Supply: 230Vac, 50Hz (IEC)
Inputs:

mic/line 6 x XLR balanced

line 2 x 6.35mm jack balanced

Input Impedance:

2.0k Ohms (mic/line)

10k Ohms (line)

Outputs:

Main 2 x XLR balanced

Record 2 x L+R RCA

Aux Send

Headphones

Output Impedance:

<75 ohms

Effects:

16 program DSP (24-bit sigma-delta, 40kHz)

Frequency response:

20Hz-30kHz

Headphones: 6.3mm jack, 30-600 ohms
Total Harmonic Distortion (THD): <0.01%
Phantom Power: +48V (XLR inputs)
Dimensions: 360 x 320 x 107mm
Amplifier

2 x 130 Watts @ 8 ohms

20 x 200 Watts @ 4 ohms
