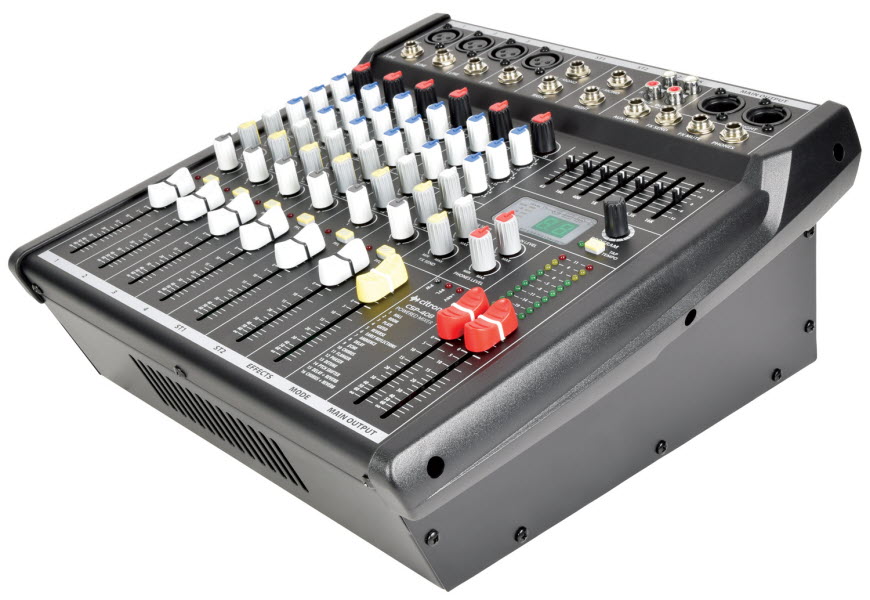

Citronic CSP-408 8-Channel Powered Mixer – 2 x 130W with DSP Effects & Graphic EQ

Citronic
445-866
5015972196175
    Delivery time:2 - 3 Working Days
Add to cart
  • Description
  • Specifications

4 x Microphone / Line Level Channels.

2 x Stereo Music Channels (Line Level).

Each Channel has a 3-Band EQ.

48V Phantom Power available.

Overall 7-Band Graphic Equaliser.

24-bit 16 program DSP effects.

Balanced XLR outputs.

IEC mains input connection.



The Citronic CSP-408 is a versatile 8-channel powered mixer designed for a range of live sound applications. With a robust 2x200W stereo amplifier, it delivers clear and powerful audio suitable for various events.

Each of the four mono channels features a balanced XLR/TRS input with 3-band EQ and aux send, while two stereo channels accommodate additional line-level sources. A 16-program 24-bit DSP effects processor with tap tempo provides a variety of vocal and instrument effects, and a 7-band global graphic EQ allows for precise tonal adjustments.

The CSP-408 includes balanced main outputs, 2-track RCA in/out, and a headphone output for monitoring. Its compact design and optional rack-mounting capability make it ideal for both portable and installed sound systems.

The Citronic CSP-408 is well-suited for various settings:


  • Mobile PA Systems: Its compact size and integrated amplifier make it perfect for portable setups.

  • Bars and Restaurants: Provides reliable sound reinforcement for live music and events.

  • Corporate Events: Offers clear audio for presentations and conferences.

  • Houses of Worship: Delivers consistent sound quality for sermons and musical performances.


With its combination of power, flexibility, and portability, the CSP-408 is a dependable choice for a wide range of audio applications.



Power Supply: 230Vac, 50Hz (IEC)
Inputs:

mic/line 4 x XLR balanced

line 2 x 6.35mm jack balanced

Input Impedance:

2.0k Ohms (mic/line)

10k Ohms (line)

Outputs:

Main 2 x XLR balanced

Record 2 x L+R RCA

Aux Send

Headphones

Output Impedance:

<75 ohms

Effects:

16 program DSP (24-bit sigma-delta, 40kHz)

Frequency response:

20Hz-30kHz

Headphones:

6.3mm jack, 30-600 ohms

Total Harmonic Distortion (THD): <0.01%
Phantom Power: +48V (XLR inputs)
Dimensions: 310 x 320 x 107mm
Amplifier

2 x 130 Watt @8 ohms

2 x 200 Watts @4 ohms
