NJS Passive DI Box

    Delivery time:2 - 3 Working Days
Add to cart
  • Description
  • Specifications

Ideal for use with electronic musical instruments

Rugged steel construction suitable for life on the road

3 Levels of Input Attenuation: 0, 20 & 40 dB

Ground Lift switch to eliminate unwanted buzz on output

Can be used in reverse to unbalance a balanced signal

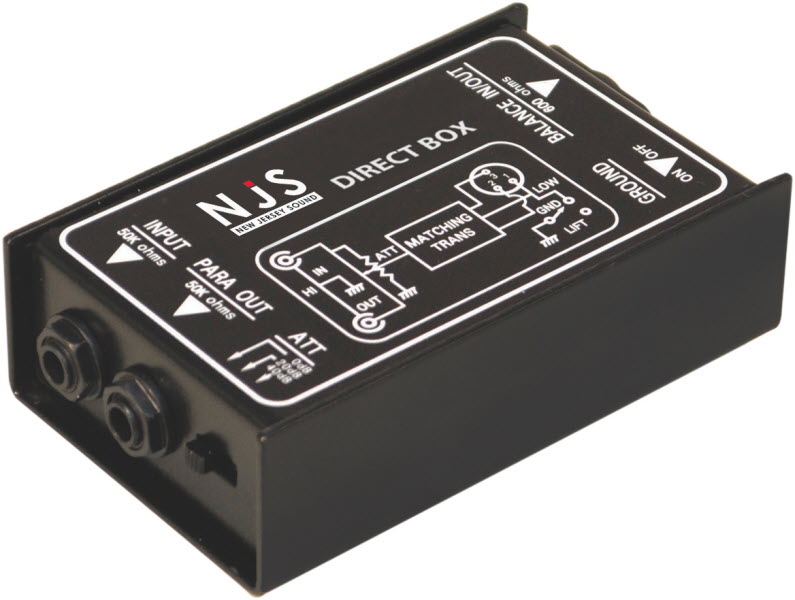

Passive DI Box converts high impedance unbalanced signals such as musical instruments to a low level balanced output signal, eliminating unwanted noise and reducing loss of high frequencies when using long cables. With 1 x 6.35 mm mono socket input and 1 x 6.35 mm link output for connection to an on-stage combo, etc, and XLR socket output. Constructed with a strong metal case for durability, this piece of kit is built for reliable, everyday use.


1 x 6.35mm Jack

Frequency response: 20Hz - 20kHz

1 x XLR

Output Impedance:

600 ohms

Dimensions: 45 x 127 x 78mm
