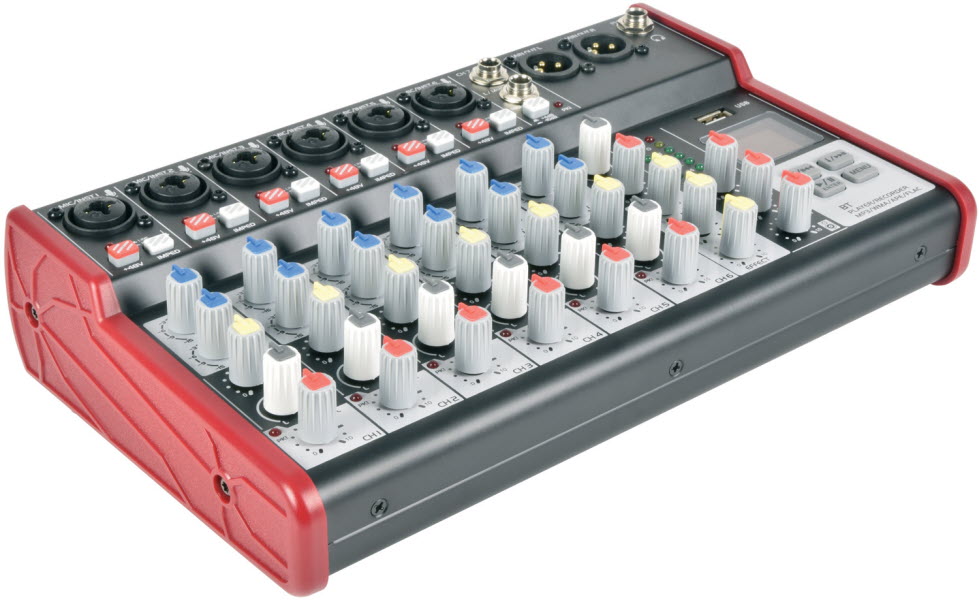

Citronic CSM-8 Compact Mixer With USB / Bluetooth

    Delivery time:2 - 3 Working Days
Add to cart
  • Description
  • Specifications

8 x Microphone / Line Level Channels.

1 x Stereo Music Channels (Line Level).

Each Channel has a 2-Band EQ.

48V Phantom Power available.

Internal Digital delay.

Built in record function.

Balanced XLR outputs.

Supplied with DC power adaptor

A compact format audio mixer with 8 mono input channels and a stereo line input. Each mono channel has a combo XLR/jack input with individually switchable mic/instrument impedance and +48V phantom power for the XLR. Input channels have High/Low EQ and Pan controls and mono channels also have Effects level to vary the amount of internal digital delay effect added for vocals or instruments. An internal player/recorder with backlit display can accept a USB memory stick containing compressed audio files in various formats or alternatively connect to a smart phone via BT wireless link. Output is delivered on a pair of balanced XLR connectors and offers very low noise operation for high quality studio or live performances.
Power Supply:

5 Vdc @ 1 Amp (Adaptor Supplied)


Mic/line     6 x XLR/Jack (bal/unbal)

Aux           2 x 6.35mm Jack L+R


Input Impedance:

2.2k Ohms (mic/line), 10k Ohms (aux)

Audio Source: Internal USB player/recorder & BT receiver

2 x XLR L+R

Output Impedance:

120 ohms


Bass -15 +15dB @ 80Hz

Top -15 +15dB @ 12kHz

Total Harmonic Distortion (THD): 0.03%
Phantom Power:


Dimensions: 274 x 165 x 66mm
