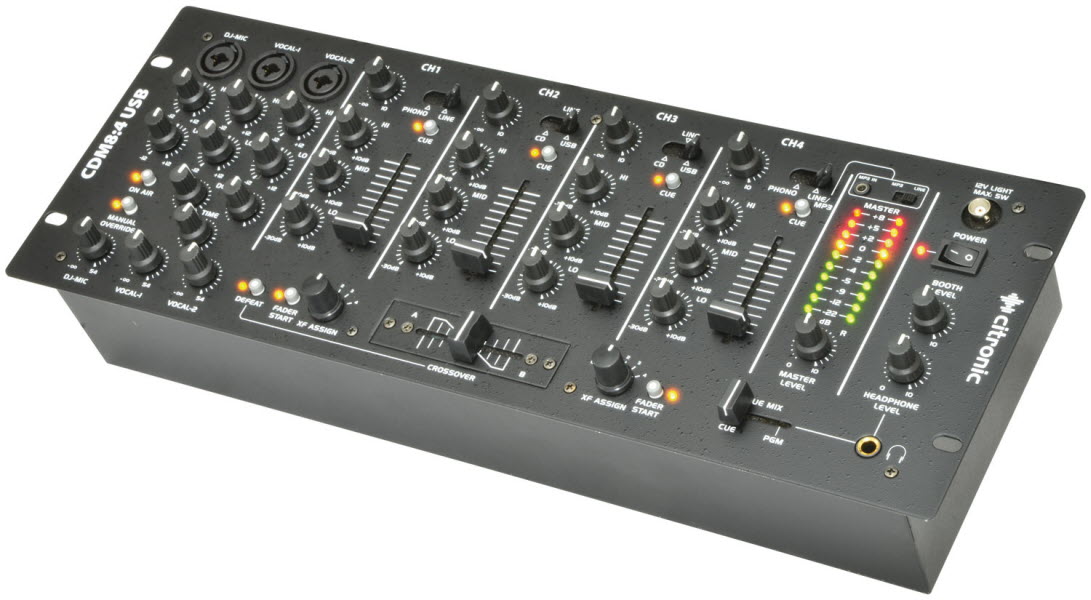

Citronic CDM8:4 USB Rackmount DJ Mixer is intended to give long term, reliable service in normal usage.

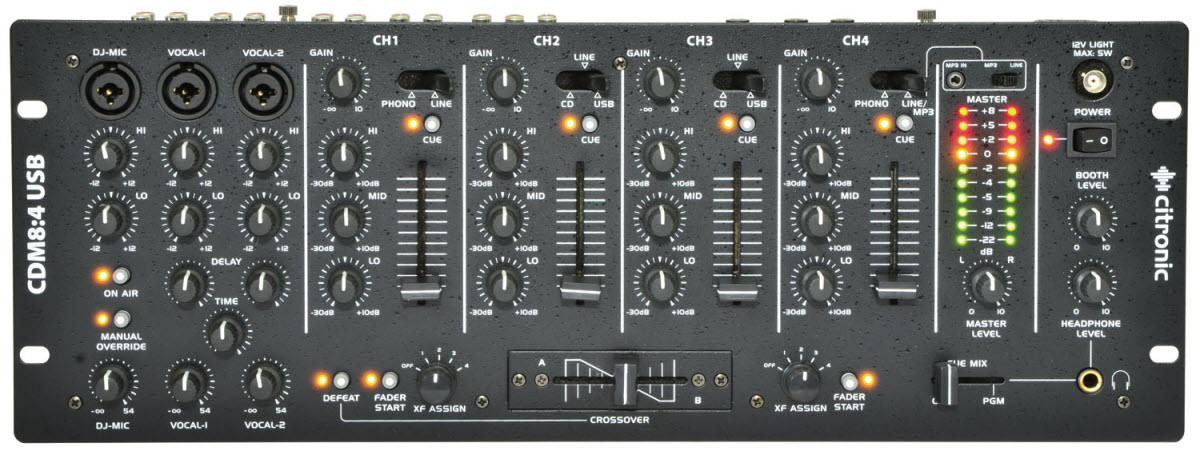

Controls

Microphone Section:

1. MICROPHONE - Combo XLR and 6.3mm jack inputs for DJ mic and 2 Vocal mics

2. Hi EQ – High frequency cut/boost for mic inputs

3. Lo EQ – Low frequency cut/boost for mic inputs

4. ON AIR – Switches on or mutes DJ Mic

5. MANUAL OVERRIDE – Reduces music level to allow DJ mic talk-over

6. DELAY – Delay effect level for Vocal mics 1 + 2

7. TIME – Time setting for vocal delay effect

8. MIC LEVELS – Individual level for DJ mic and 2 vocal mics

Stereo Section:

1. CH.1 PHONO/LINE – Input selector for channel 1, turntable or line input

2. CH.2 CD/LINE – Input selector for channel 2, CD player or line input

3. CH.3 CD/USB1/LINE – Input selector for channel 3, USB, CD player or line input

4. CH.4 PHONO/USB2/LINE/MP3 – Input selector for channel 4, USB, turntable or line/MP3 player

5. MP3 IN – 3.5mm stereo jack socket for personal MP3 player or other portable source

6. MP3 - LINE – Slide switch to select MP3 input or rear panel line input for channel 4

7. GAIN – Individual gain controls for each stereo channel for matching input levels

8. Hi EQ – High frequency cut/boost for each stereo channel

9. Mid EQ – Middle frequency cut/boost for each stereo channel

10. Lo EQ – Low frequency cut/boost for each stereo channel

11. Fader – Individual volume fader for each stereo channel

12. CUE – Routes channel to meters and headphones for monitoring and cueing tracks

13. DEFEAT – Disables crossfader control over stereo channels

14. FADER START – Activates fader start for the channel assigned to the left side of the cross fader.

15. ASSIGN – Selects channel 1, 2, 3 or 4 for left side of crossfader

16. Crossfader – Allows seamless fading between 2 assigned channels

17. ASSIGN – Selects channel 1, 2, 3 or 4 for left side of crossfader.

18. FADER START – Activates fader start for the channel assigned to the right side of the cross fader.

Master Section:

1. VU Meters – Dual 10-segment LED volume meters

2. LEVEL– Master volume level rotary control

3. CUE MIX – Varies headphones signal between cue selected channel(s) and main programme output

4. 12 LIGHT – BNC connector providing 12Vdc for console light up to 5W output

5. POWER – Main power switch and LED indicator

6. BOOTH LEVEL – Level control for BOOTH OUTs (39)

7. Headphones LEVEL – Headphone volume control

8. Headphones – 6.3mm stereo jack socket for headphones output

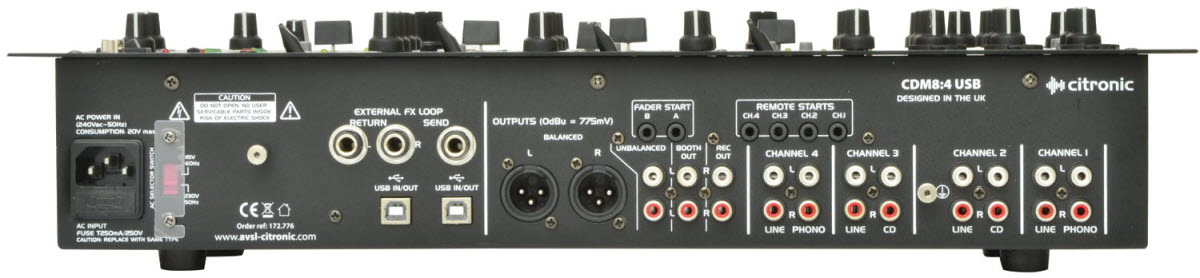

Rear Panel

1. Mains inlet – IEC connector to connect to mains using the supplied lead

2. Fuse Holder – 20mm mains fuse holder - please note correct rating when replacing

3. RETURN L+R – When these 6.3mm jacks are connected to the outputs of an external processor, the output of the external unit will override the internal digital delay effect for Vocal mics 1 + 2.

4. SEND – Mono 6.3mm jack to connect to the input of external processors, sending the effect mix from Vocal mics 1 + 2.

5. OUTPUTS BALANCED – Balanced XLR L + R main mix outputs

6. OUTPUTS UNBALANCED – Unbalanced RCA main mix outputs

7. BOOTH OUT – RCA outputs governed by BOOTH LEVEL control (30)

8. REC OUT – High frequency cut/boost for each stereo channel

9. CHANNEL 4 LINE – RCA L+R inputs for line level source (CD, DVD, MP3, PC etc.) (this input is switchable with the top panel 3.5mm stereo MP3 input)

10. CHANNEL 4 PHONO – RCA L+R phono inputs for turntable

11. CHANNEL 3 LINE – RCA L+R inputs for line level source (CD, DVD, MP3, PC etc.)

12. CHANNEL 3 CD – RCA L+R inputs for CD player (or other line level source)

13. Ground (earth) – Screw terminal for grounding equipment to the case of the CDM8:4 USB. Attach turntable ground spade connectors here.

14. CHANNEL 2 LINE – RCA L+R inputs for line level source (CD, DVD, MP3, PC etc.)

15. CHANNEL 2 CD – RCA L+R inputs for CD player (or other line level source)

16. CHANNEL 1 LINE – RCA L+R inputs for line level source (CD, DVD, MP3, PC etc.)

17. CHANNEL 1 PHONO – RCA L+R phono inputs for turntable

18. REMOTE STARTS – 3.5mm mono jack outputs sending “start” trigger signals from channel faders 1 to 4 to start play on compatible CD players automatically when the fader is moved upward from the lowest point.

19. USB IN/OUT – USB B Input/Output for Channel 4

20. USB IN/OUT – USB B Input/Output for Channel 3

Connection Guide

Operation

• Check mains for correct voltage as indicated near to the IEC mains inlet on the rear panel.

• Connect to mains supply using the IEC cable provided.

• Connect the Main unbalanced RCA and/or balanced XLR outputs to the main PA and ensure that the volume levels are turned down to avoid damage.

• Connect the BOOTH outputs to powered booth monitors or separate PA zone.

• Connect any turntables to the RCA PHONO inputs on ch.1 and ch.2.

• Earth turntables to the case grounding point on the rear panel

• Connect CD players or other line output sources to the CD inputs.

• Connect CD, CD+G, laptop, TV decoder, DVD or MP3 players to LINE inputs.

• Connect DJ mic and Vocal mics 1 + 2 to the top panel jack/XLR combo sockets

• If required, connect personal MP3 player to top panel 3.5mm input

• Connect headphones to the HEADPHONE jack

• With MASTER LEVEL down, switch the power on.

• Ensure microphone levels are turned down

• Gradually increase MASTER LEVEL and channel levels to check input signals.

• Be aware that the CROSSFADER also operates across assigned channels - this can be bypassed by pressing DEFEAT.

• To use crossfader, select channels using the ASSIGN levers, ensure DEFEAT is off and the crossfader will then seamlessly blend between these 2 channels.

• Gradually increase microphone channel levels to check microphone signals.

• Monitor each stereo channel via headphones selecting using the CUE switches

• Whilst a channel is on CUE, adjust the GAIN so that LED meters show a full signal without showing “in the red” (overload)

• Adjust Hi, Mid and Lo EQ settings to the desired tonal effect

• When using the DJ mic, push the ON AIR switch and if required, push MANUAL OVERRIDE to drop the music level by a fixed amount whilst talking.

• Adjust Hi and Lo EQ and DJ MIC level settings to suit.

• For singers and karaoke, increase the levels of Vocal mics 1 + 2 and adjust Hi and Lo EQ settings to suit.

• For each vocal mic, adjust DELAY level to the desired amount, variation in the time between delay repeats can be adjusted via the TIME rotary.

• Should a different effect (eg. Reverb, compression, DSP) be required, connecting SEND on the rear panel to an external processor’s input and the processor’s output(s) to the rear panel RETURNS will serve as an effects loop, overriding the internal delay effect. The DELAY controls will now act as an external effects mix.

• When not being used, turn down the Vocal mic levels to avoid unwanted noise.
