Citronic RU105-N Beltpack Radio Microphone System

Citronic
445-973
5015972178522
    Delivery time:2 - 3 Working Days
Add to cart
  • Description
  • More
  • Specifications

RU105-N Beltpack Wireless Microphone System.
Single channel system with removable antennas (BNC connection).
1 x Output balanced XLR or 6.35mm Jack Socket.
LCD for indicating RF and AF signal level and frequency.
81 selectable UHF frequencies (863-865 MHz).
Pilot tone squelch, noise mute.
Operating Range 25 - 30m (Line of Sight)

Single channel PLL tuneable UHF wireless system with a beltpack transmitter. The receiver unit is compatible with standard 19" racks using the included rack ears and front mounting antenna accessories. The RF carrier frequency is selected on the receiver and synchronized to the transmitter via infra-red at the touch of a button. Up to 4 RU105 systems can be operated together on the EU licence-free band.

What you get for your money:

1 x UHF receiver

1 x UHF Beltpack Transmitter

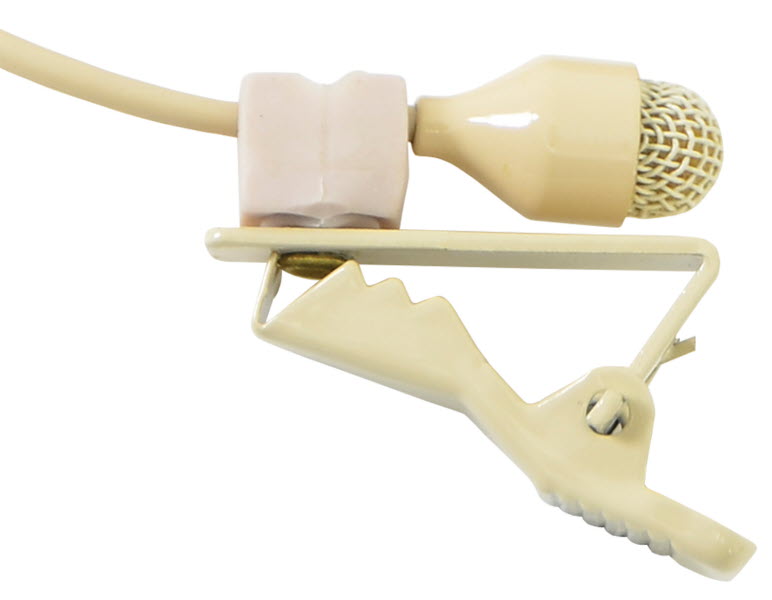

1 x Lavaliar Microphone (Black)

1 x Cardoid Neckband Microphone (Biege)

2 x AA batteries

1 x UHF antenna (BNC)

1 x BNC Plug - Socket Antenna lead

1 x Rack-mounting kit

1 x 230Vac Mains power adaptor

1 x 6.3mm jack to jack lead

Power Supply:

Receiver: 12 - 18Vdc 350mA (Via Adaptor) Supplied

Transmitter: 2 x AA Batteries


Frequency Response:

50Hz - 18KHz

Output Impedance :

XLR 400mV / 2200 ohms


6.35mm jack 200mV / 2200 ohms

Total Harmonic Distortion (THD): <0.5% @ 1KHz
Antenna connection:

BNC

Output connections: 1 x XLR balanced

1 x 6.3mm jack, unbalanced

Dimensions:

Receiver 44 x 198 x 190mm

Transmitter 110 x 67 x 24mm
