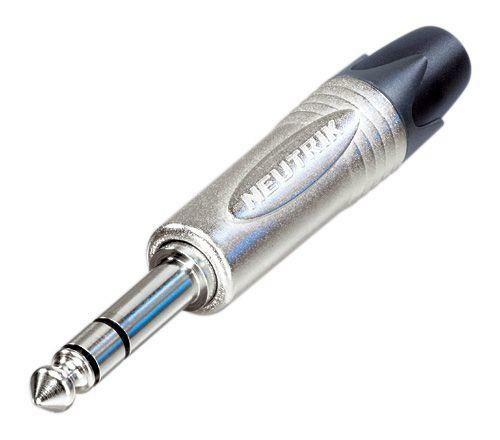

Neutrik NP3X 6.35mm Stereo Jack Plug

Neutrik
075-088
7613187000706
    Delivery time:2 - 3 Working Days
Add to cart
  • Description
  • Specifications

NP3X 6.35mm Stereo Jack Plug.
Suitable for cables up to 7.0mmØ.
Solder Connections.

NP3X 3 pole 1/4" professional phone plug, nickel contacts, nickel shell

The heavy duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4" plug with unique Neutrik chuck type strain relief on the market. The slimline shell with a width of 14.5 mm meets the most recent requirements for highest density jackfields (15.88 mm jack pitch).

The precise machined one-piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip.

The NP3X serves all applications such as guitar, audio cables, snakes, speakers, amplifiers and mixing desks.

Contact resistance: depends on mating connector mΩ
Dielectric strength: 1.0 kVdc
Insulation resistance: > 2 GΩ (initial)
Rated current per contact: depends on mating connector A
Rated voltage: < 50 V
Cable Diameter: 4.0 - 7.0mm
Lifetime: > 1000 mating cycles
Wiresize: max. 1.0mm² (18AWG)
Wiring: Solder contacts
Locking device:

None
