Citronic CSL-10 Mixer
Citronic
445-781
5015972196212
    Delivery time:2 - 3 Working Days
Add to cart
  • Description
  • Specifications

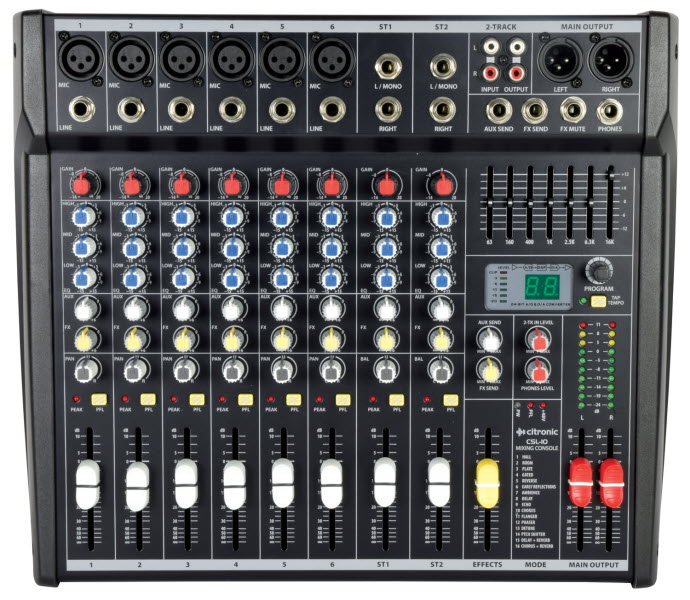

CSL-10 Compact Mixing Console.

6 x Microphone / Line Level Channels.
2 x Stereo Music Channels (Line Level).
Each Channel has a 3-Band EQ.
48V Phantom Power available.
Overall 7-Band Graphic Equaliser.
24-bit 16 program DSP effects.
Balanced XLR outputs.
IEC mains input connection.

A compact mixing console with balanced mic/line inputs and 2 stereo inputs, each with 3-band EQ and aux send. A 16 program DSP section with tap tempo can provide vocal effects and a 7-band graphic EQ facilitates global tone control. Designed primarily for venues and stage applications, these models offer a compact and comprehensive solution for mobile PA, bars and special events.
Power Supply: 230Vac, 50Hz (IEC)
Inputs:

mic/line 6 x XLR balanced

line 2 x 6.35mm jack balanced
Input Impedance:

2.0k Ohms (mic/line)

10k Ohms (line)
Outputs:

Main 2 x XLR balanced

Record 2 x L+R RCA

Aux Send

Headphones
Output Impedance:

<75 ohms
Effects:

16 program DSP (24-bit sigma-delta, 40kHz)
Frequency response:

20Hz-30kHz
Headphones: 6.3mm jack, 30-600 ohms
Total Harmonic Distortion (THD): <0.01%
Phantom Power: +48V (XLR inputs)
Dimensions: 360 x 320 x 107mm
