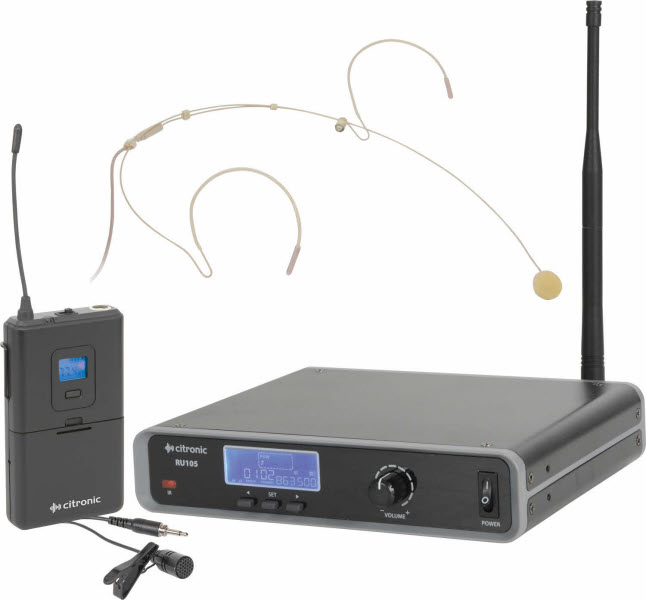

This professional wireless set provides a high quality microphone with a PLL tuned UHF radio system for freedom of movement without loss of audio quality. Please read this manual before using this equipment in order to avoid damage through incorrect operation and to get the best performance from your purchase.

Receiver

Transmitter

Setting Up

Insert the supplied AA batteries into the transmitter by carefully unscrewing the base of the handheld or opening the flap of the bodypack to reveal the battery compartment. Insert the batteries (ensuring that + and - are the correct way round for each cell) and carefully replace the cover.

For neckband or lavalier microphones, connect the 3.5mm jack into the bodypack, screwing the threaded jack securely into the socket.

The receiver antenna may be connected directly to the BNC connector on the rear panel or alternatively front-mounted onto rack ears (see below)

If the receiver is to be rack-mounted, place the supplied rack ears against each side of the receiver and fix securely with 2 screws in each. These rack ears have a hole for front-mounting the antenna and a BNC extension lead for fixing into the hole. This should be connected to the BNC on the rear panel, creating a front socket for the antenna to connect onto.

A choice of unbalanced 6.3mm jack or balanced XLR output is available on the rear panel of the receiver. Connect the jack or XLR (optional) lead to the relative output connector, turn down the volume of any equipment (mixer, amplifier etc.) that the signal will be fed into and then connect the jack or XLR to the equipment.

Position the receiver within the best available line of sight to the transmitters and connect the DC jack of the supplied power adaptor to the receiver and the plug top to the mains outlet.

Operation

Turn microphone levels down on the receiver and switch on power on the front panel of the receiver.

Warning! - take care not to point microphones towards speakers – this can cause damaging feedback (loud whistle or howling noise) – try to point microphones away from the speaker cabinets.

For the handheld version, move the switch on the handheld transmitter upward to switch it on and the LCD display should light for a few seconds, showing the carrier frequency and battery status.

For the bodypack transmitter, press and hold the front on/off button until the display lights up for a few seconds, ensuring that the Mute switch is off. The display will show the current carrier frequency and battery status. The transmitter frequency should match the frequency on the receiver. If not, see “Tuning” below.

Gradually increase the microphone level on the receiver, then increase the volume on the mixer or amplifier until the sound from each microphone can be heard through the equipment.

Tuning

The carrier frequency may be selected on the receiver unit by pressing the SET button twice, which causes the GROUP label to flash in the display. The and buttons can be used to select the Group from 1 to 7. Pressing the SET button again causes the CHANNEL label to flash. The channel can be selected within a group using the and buttons.

Groups 1 to 6 have between 3 and 5 preset channels, whilst Group 7 allows access to all 81 possible frequencies. Depending upon any other radio signals in the vicinity of the operating environment, one particular Group may offer a better channel spacing than another and this should be determined by experimentation. If a particular group of frequencies results in poor reception or interference, try another or use Group 7 to manually select carrier frequencies in 25kHz steps.

Once a channel is selected, press SET to accept the channel and press SET again to transmit the IR sync signal (animated lines will show next to IR in the display). Hold the IR detector on the handheld microphone or inside the bodypack battery compartment up to the IR sender on the main unit to sync the carrier frequency to the transmitter (the transmitter must be switched on for IR sync)

In Use

Switching on the transmitter will open up the radio carrier frequency to the receiver and also send a pilot tone frequency, which is not audible but is used by the receiver to open the audio channel. This system helps to avoid any spurious radio frequencies interfering with the wireless microphone signal.

When the transmitter’s RF signal is recognized by the receiver, an RF meter will show the carrier signal strength in the LCD display. Likewise, speaking into the microphone will send audio over this carrier and an AF volume meter will show the audio level in the LCD display.

For the neckband or lavalier microphone, there is also a mute switch on the top of the bodypack, which can be used to temporarily cut the microphone output whilst maintaining the carrier frequency. This may be useful to silence the mic whilst moving across the front of speakers or as a standby setting.

In addition, the bodypack has a Gain adjustment inside the battery compartment to match the gain level for the type of neckband or lavalier microphone that is connected to it.

If the wireless system is to be out of use for longer than a few seconds, it is preferable to switch the transmitter off, which deactivates the radio carrier signal and powers down the transmitter.
Be sure to turn down the volume of the mixer or amplifier and then switch off the receiver.

Unplug signal leads from the receiver and mixer or amplifier when moving or packing away.

If the system is not to be used for long periods of time, remove the batteries from the transmitters and unplug the power adapter from the receiver and the mains outlet.

Folding away or removing the antennas can also help avoid damage when the system is not in use.
