IMG Stageline FGA-202 Ground Loop Isolator

IMG Stageline
    Delivery time:2 - 3 Working Days
Add to cart
  • Description
  • Specifications

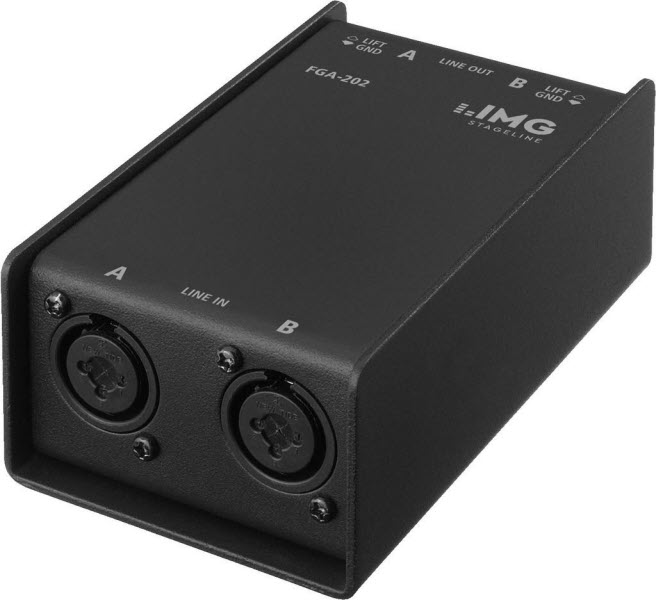

FGA-202 2-Channel Ground Loop Isolator.

2 x Inputs XLR / 6.35mm Jack sockets.
2 x Outputs balanced XLR sockets.
Ground lift switch
Uses conventional balancing transformer.
Provides Electrical Isolation between Input and Output.
Robust metal housing with very good shielding qualities, suitable for stage applications.

Ground Loop isolator for reducing signal interference and hum loops which may occur when connecting sound equipment together. PC sound cards to hi-fi systems or mixers etc. Inputs have combination 6.35mm Jacks / XLR.

Inputs: 2 x Combination 6.35mm jack / XLR balanced
Frequency response: 20Hz - 20kHz

2 x XLR balanced

Output Impedance:

600 ohms


125 x 75 x 55mm
