The Z5M is a
professional 1U mixer offering many features to give versatile control
for up to 5 stereo output zones. In order to achieve the best results
from this equipment and avoid damage through misuse, please read and
follow these instructions and retain for future reference.
Front Panel

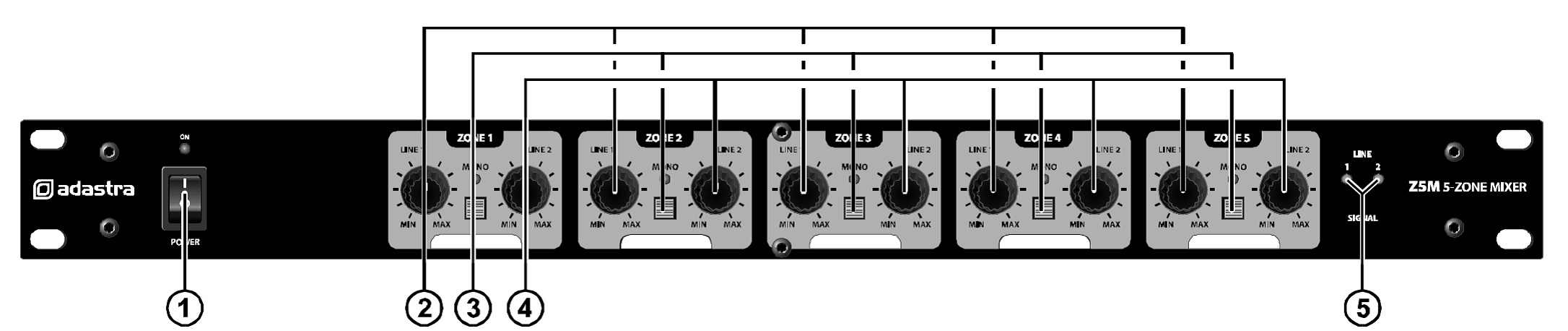

1. POWER switch and indicator2. LINE 1 source volume controls for each zone3. MONO mode switch and indicator for each zone4. LINE 2 source volume controls for each zone5. LINE 1 and 2 signal indicators
Rear Panel
6. LINE 2 left & right inputs (balanced XLRF)
7. LINE 1 left & right inputs (balanced XLRF)
8. ZONES 1 to 5 left & right outputs (balanced XLRM)
9. IEC mains inlet and fuse
Applications
The Z5M can be used for any multi-output setup and is ideally suited to
controlling a multi-room zoning sound system with up to 5 stereo or mono
zones. Individual zones can be selected as mono if speaker placement is
not conducive to stereo imaging. 2 separate stereo inputs can be
selected or blended at will for each zone, opening up the possibility of
separate program material for specific zones.
Connection
All connections are via balanced XLR and operate at line level. Use good
quality XLR signal leads to connect the source signals to LINE 1 and
LINE 2 inputs. Each output should be connected to the respective
amplifier or active speakers for the particular zone, again using good
quality XLR signal leads. Connect mains using the supplied IEC lead.
Operation
Set amplifier and active speaker volume levels fully down
Turn levels for each zone fully down to “MIN” (for both LINE 1 and LINE
2 sources)
Select MONO for any zones that are better suited to mono output.
Press the POWER switch on and play the signals connected to LINE 1 and
LINE 2 inputs.
The LINE SIGNAL LEDs should indicate the presence of each input signal.
Gradually increase and then decrease the volume for LINE1 and LINE 2 to
each zone in turn to check the output. Set the volumes and adjust for
each source to each zone as required.
Before powering the Z5M down, turn down amplifier and active speaker
volumes to avoid loud noises through the speakers.
